Hertz Mille Legend MLK 700.3 3" (8cm) Speaker Set
SKU:  MLK-700.3
EAN:  8018823114035

1 Review

100 Watt

Mille Legend MLK 700.3

SKU:  MLK-700.3
EAN:  8018823114035

1 Review

Technical Highlights

  • Power handling: RMS 100 W, peak 200 W, impedance 4 Ohm.
  • Frequency response: 200 28k Hz, sensitivity 90 dB, tweeter 92 dB.
  • Voice coil: woofer Ø 20 mm, tweeter Ø 28 mm.
  • More technical details
00 d
00 h
00 m
00 s
€549,99
-17% €659,00 €549,99
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €45,83 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Hertz-Mille Legend MLK 700.3-3" (8cm) Lautsprecherset-masori-kaufen
€549,99
€659,00 €549,99

Mille Legend MLK 700.3 by Hertz

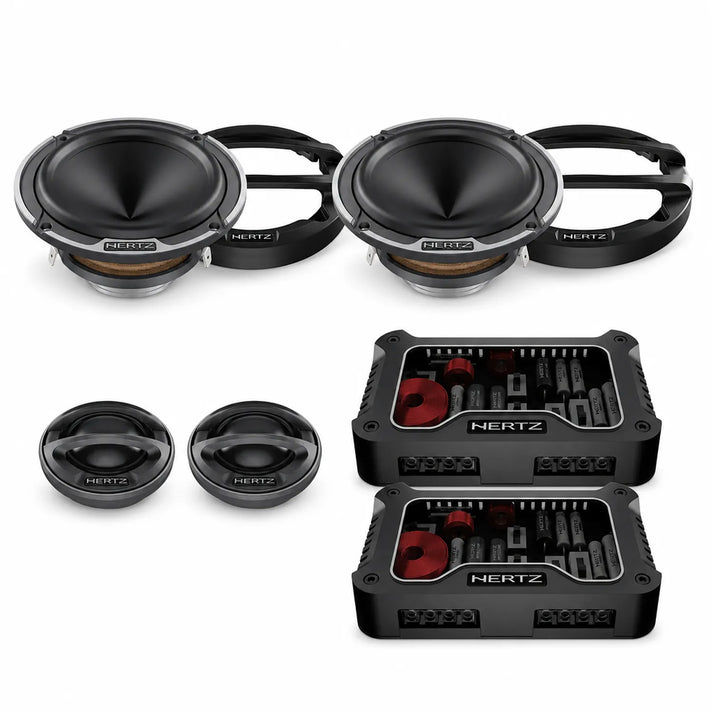

Hertz Mille Legend MLK 700.3 is a 3-inch (8 cm) Speaker Set with a 2-way passive Crossover. The power handling is 100 W RMS and 200 W peak at 4 Ohm impedance. The frequency response ranges from 200 Hz to 28 kHz, with a sensitivity of 90 dB SPL for the midrange and 92 dB SPL for the Tweeter. A midrange contour control with a 3-position switch varies the crossover point of the ML 700.3 Legend midrange with the Tweeter. The Crossover operates with a cut-off at 4.5 kHz and 6/12 dB per octave. The midrange has a size of 70 mm. Designed for combination with an ML 1650.3 or ML 1800.3 Legend Woofer in a multi-amplifier system. Weights: Woofer 0.210 kg, Tweeter 0.1 kg, Crossover 0.57 kg.

Features
  • 3-inch (8 cm) Speaker Set
  • 2-way passive Crossover
  • Midrange contour control with 3-position switch to vary the crossover point with the Tweeter
  • RMS power 100 W
  • Peak power 200 W
  • Impedance 4 Ohm
  • Frequency response 200 Hz – 28 kHz
  • Sensitivity midrange 90 dB SPL
  • Sensitivity Tweeter 92 dB SPL
  • Midrange size 70 mm
  • Combination with ML 1650.3 or ML 1800.3 Legend Woofer in multi-amplifier system
Technical Specifications
  • Tweeter diaphragm 35 mm
  • Woofer voice coil Ø 20 mm
  • Tweeter voice coil Ø 28 mm
  • Crossover cut-off 4.5 kHz – 6/12 dB oct.
  • Weight Woofer 0.210 kg
  • Weight Tweeter 0.1 kg
  • Weight Crossover 0.57 kg
  • D 65 mm
  • Re 3.8 Ohm
  • Fs 110 Hz
  • Le 0.05 mH
  • Vas 1.1 l
  • Mms 2.7 g
  • Cms 0.7 mm/N
  • BL 3.3 T*m
  • Qts 0.57
  • Qes 0.67
  • Qms 4
  • SPL 90 dB

Your benefits at Masori

Hertz Mille Legend MLK 700.3 Datasheet

Open datasheet

Frequently Asked Questions about Mille Legend MLK 700.3

What are the main features of the Mille Legend MLK 700.3 Speaker Set?

The Mille Legend MLK 700.3 from Hertz features a size of 70 mm and a power handling of 100 Watts RMS. Notably, it has a midrange contour control that allows for individual adjustment of the crossover point between the midrange driver and the tweeter. This offers a unique sound modulation that can be tailored to personal preferences. The impedance is 4 Ohms, and it has a frequency response of 200 Hz to 28 kHz. The sensitivities for the midrange driver and tweeter are 90 dB and 92 dB, making it ideal for complex audio systems.

How does the crossover type of the Mille Legend MLK 700.3 affect the sound?

The Mille Legend MLK 700.3 is equipped with a 2-way passive crossover. This crossover separates the audio into two ranges at a crossover cut-off of 4.5 kHz with a slope of 6/12 dB per octave. This means that high and mid frequencies are treated separately to minimize distortion and achieve a clear separation of frequency bands. This ensures high sound quality, which particularly unfolds in complex audio compositions, benefiting discerning music listeners greatly.

What power specifications does the Mille Legend MLK 700.3 offer?

The Mille Legend MLK 700.3 Speaker Set from Hertz impresses with a robust RMS power of 100 W, while the peak power is 200 W. Its tweeter diaphragm has a diameter of 35 mm, while the voice coil of the woofer and tweeter measures Ø 20 mm and Ø 28 mm, respectively. These specifications allow for powerful reproduction of mid to high frequencies and are ideal for those seeking strong and clear sound reproduction in their audio systems.

How do the Thiele-Small parameters of the Mille Legend MLK 700.3 behave?

The Thiele-Small parameters of the Mille Legend MLK 700.3 include a Re value of 3.8 Ohms and a free resonance frequency (Fs) of 110 Hz. With an equivalent membrane area Vas of 1.1 liters and a total quality factor Qts of 0.57, it is excellent for precise and controlled bass reproduction. The parameter BL, which indicates a magnetic force of 3.3 T*m, reflects its performance in controlling the diaphragm movement. These values are crucial for assessing the quality of speakers in terms of their acoustic properties.

What dimensions are important for the installation of the Mille Legend MLK 700.3?

When installing the Mille Legend MLK 700.3, you should consider its compact dimensions of 70 mm. This facilitates its integration into various vehicles or audio installations. The low weight of 0.21 kg for the woofer and 0.1 kg for the tweeter makes it possible to install it even in tight spaces without compromising vehicle dynamics. Its dimensions and the weight of the crossover at 0.57 kg ensure that the speaker can be easily integrated into most audio systems, taking minimal space requirements into account.

How does the midrange contour control of the Mille Legend MLK 700.3 modify the sound?

The midrange contour control of the Mille Legend MLK 700.3 offers the ability to adjust the sound of the speaker by varying the crossover point between the midrange driver and the tweeter. This 3-position switch allows you to individually regulate the balance between the mid frequencies and the higher frequencies, depending on personal listening preferences. This feature can be particularly useful when you change your preferences or the type of music being played and need finer control over the audio performance, leading to a differentiated and personalized listening experience.

What sensitivity values does the Mille Legend MLK 700.3 offer?

The sensitivity of the Mille Legend MLK 700.3 is a key feature that underscores its efficiency in audio playback. The midrange driver has a sensitivity of 90 dB, while the tweeter operates at 92 dB. These values mean that the speaker can produce a considerable volume at a given input voltage, which is particularly important for sound quality in different listening environments and vehicle configurations. Higher sensitivities lead to a clearer and more dynamic sound image that can also perform well at lower power requirements.

What acoustic properties does the Mille Legend MLK 700.3 have?

The Mille Legend MLK 700.3 offers excellent electro-acoustic specifications, such as a Cms of 0.7 mm/N, which affects the compliance of the speaker diaphragm. The mechanical quality Qms of 4 ensures that it provides resonance-free playback characteristics. With an Mms of 2.7 g, the effective moving mass is shown, which directly influences sound quality and the precision of curve representation and bass reproduction. These acoustic parameters allow for an accurate reproduction of musical details, providing audiophile listening experiences at a high level.

What is the frequency response of the Mille Legend MLK 700.3?

The Mille Legend MLK 700.3 from Hertz covers a comprehensive frequency range from 200 Hz to 28 kHz. This wide frequency response ensures that both mid and high tones are reproduced clearly and precisely. The min-max range is ideal for complex music compositions where a variety of sound nuances must be represented. Especially in combination with other components of the series, the sonic impression, particularly at high volumes, is enabled. This frequency response is excellent for genres that require detailed high and mid-frequency representations, such as classical music.

Is the Mille Legend MLK 700.3 compatible with other sound systems?

The Mille Legend MLK 700.3 is specifically designed to be combined in multi-amplifier systems, particularly with the ML 1650.3 or ML 1800.3 Legend Woofer. The product dimensions and technical specifications, such as the impedance of 4 ohms, make it compatible with a variety of existing audio systems. This means it can be integrated into different vehicle models, provided the spatial requirements are met. It is advisable to check the dimensions before installation to ensure that the Speaker Set fits perfectly with the existing system and allows for seamless integration.
