  3. Pro 4.0 4mm 10x (35x50cm)
Vibrofiltr Pro 4.0 4mm 10x (35x50cm) Insulation

1 Review

1.75m²

Pro 4.0 4mm 10x (35x50cm)

1 Review

Technical Highlights

  • 4mm thick aluminum butyl, 0.1mm aluminum, 3.9mm butyl mix.
  • Contains 10 mats, size 350x500mm, suitable for 1.75m² area.
  • Mechanical loss factor 0.6 at 200 Hz, high damping efficiency.
  • More technical details
00 d
00 h
00 m
00 s

15% Code

BLITZSALE15
€84,15
-15% €99,00 €84,15
5% discount with prepayment
€48,09 m2 inkl. VAT , possibly plus shipping
Delivery
Apr 24, - Apr 27,
x Set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €7,01 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

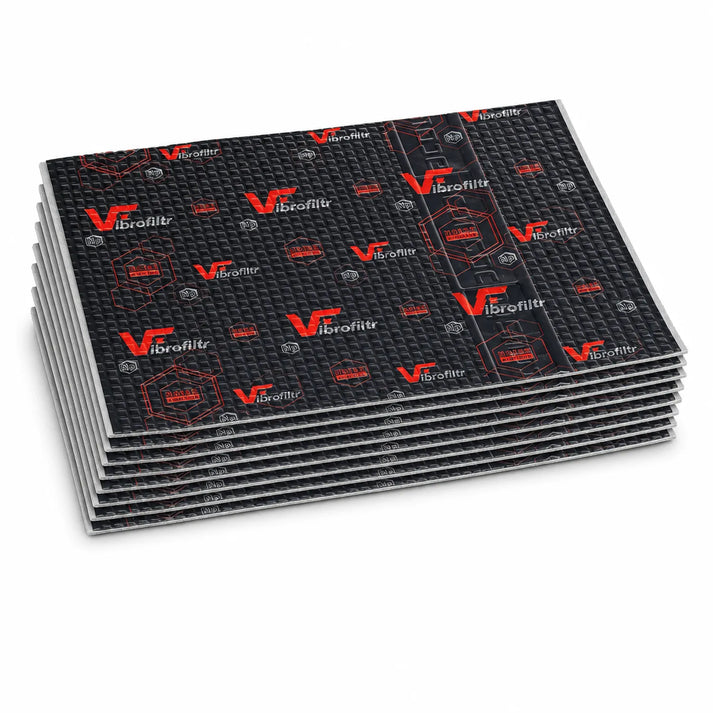

A rectangular black Pro 4.0 4mm Vibrofiltr Alubutyl Matten 10x35x50cm features self-adhesive, textured surface and red Vibrafix logos.
€84,15
€99,00 €84,15
€48,09 m2

Pro 4.0 4mm 10x (35x50cm) by Vibrofiltr

Pro 4.0 4mm 10x(35x50cm) is an Insulation from Vibrofiltr made of 4 mm thick black Alubutyl mats. The set includes 10 self-adhesive mats measuring 350 mm x 500 mm x 4 mm. The composite material is based on high-quality butyl rubber reinforced with extruded aluminum foil; the thickness of the aluminum foil is 0.1 mm (100 μm). The surface features cuboid grooves. Properties: high adhesive strength, multilayer processing without heating, high stability due to thick aluminum foil, no falling off in cold conditions. Mechanical loss factor at 200 Hz: 0.6. Package size 1.75 m², surface weight 6.4 kg/m². Applications: doors, roof, engine partition, wheel arches, trunk, hood. High insulation effect with comparatively low weight.

Features
  • Insulation
  • 10 mats, 350 mm x 500 mm x 4 mm
  • 4 mm thick, black
  • Self-adhesive
  • Material: composite material based on high-quality butyl rubber reinforced with extruded aluminum foil
  • Aluminum foil thickness: 0.1 mm (100 μm)
  • Surface with cuboid grooves
  • Multilayer processing without heating
  • Very high adhesive strength
  • High stability due to thick aluminum foil
  • No falling off in cold conditions
  • High insulation effect with comparatively low weight
  • Enough for the insulation of 4 doors + trunk + side panels
  • Applications: doors, roof, engine partition, wheel arches, trunk, hood
Technical Data
  • Material thickness: 4 mm (0.1 mm aluminum layer + 3.9 mm butyl mix)
  • Surface weight: 6.4 kg/m²
  • Package size: 1.75 m²
  • Mechanical loss factor at 200 Hz (damping efficiency): 0.6
  • Package contents: 10 mats
  • Roll size: 350 x 500 mm

Your benefits at Masori

Frequently Asked Questions about Pro 4.0 4mm 10x (35x50cm)

How strong are the Pro 4.0 Alubutyl mats from Vibrofiltr?

The Pro 4.0 Alubutyl mats from Vibrofiltr have a total material thickness of 4 mm, consisting of a 0.1 mm thick aluminum layer and a 3.9 mm thick butyl mix. This thickness significantly contributes to the high stability and effectiveness of the insulation mats, especially in damping vibrations and acoustic resonances. The combination of aluminum and butyl ensures efficient noise insulation and facilitates adaptation to complex sheet metal structures through the cuboid grooves on the surface. This design helps to significantly reduce structure-borne noise while providing easy and flexible installation without the need for heating.

What is the surface weight of the Vibrofiltr Pro 4.0?

The surface weight of the Pro 4.0 Alubutyl mats from Vibrofiltr is 6.4 kg/m². This weight is due to the robust combination of butyl rubber and aluminum foil, which ensures excellent insulation performance without unnecessarily burdening the vehicle. The balance between material weight and insulation performance ensures that you receive effective noise and vibration damping, which is crucial for damping structure-borne noise. Despite the comparatively low surface weight, the mats offer high stability and top-notch adhesive properties, ideal for multilayer applications.

What are the dimensions of the individual mats in the Vibrofiltr Pro 4.0 package?

Each mat in the Pro 4.0 package from Vibrofiltr measures 350 mm x 500 mm. This size offers versatile application possibilities in various vehicle areas such as doors, roof, engine partition, wheel arches, trunk, and hood. The compact dimensions allow for easy handling and precise adjustment to the specific areas that need to be insulated. Thanks to the self-adhesive backing and flexible material structure, these mats can also be easily installed in tighter spaces. The combined dimensions of the 10 mats result in a total insulation area of 1.75 m².

What is the material composition of the Vibrofiltr Pro 4.0?

The Pro 4.0 from Vibrofiltr is made of a composite material that combines high-quality butyl rubber with extruded aluminum foil reinforced polymers. This material composition provides effective vibration and noise damping. The high-quality butyl mix ensures excellent elastomechanical properties, while the aluminum foil with a thickness of 0.1 mm provides additional stability and temperature resistance. This special material combination is complemented by the cuboid grooves, which allow for optimal adaptation to different sheet metal shapes and prevent falling off in cold conditions.

How do you process the Pro 4.0 aluminum butyl mats from Vibrofiltr?

Processing the Pro 4.0 aluminum butyl mats is incredibly simple, as no heating is required. For installation, you apply the self-adhesive mats to the surfaces to be insulated, such as doors, roof, or trunk. The outstanding adhesive strength ensures a secure hold, even with multilayer applications. Additionally, the material is designed to adapt to complex shapes, which is facilitated by the cuboid grooves on the surface. These grooves increase flexibility and adaptability to various vehicle parts, thus ensuring lasting damping even at low temperatures.

What are the application areas for the Vibrofiltr Pro 4.0 mats in the car?

The Pro 4.0 mats from Vibrofiltr are versatile and are excellent for insulating various areas of the vehicle. Typical application areas include doors, roof, engine partition, wheel arches, trunk, and hood. The mats are designed to effectively dampen structure-borne sound and significantly reduce vibrations and noise. Whether you want to improve your vehicle's driving characteristics or acoustically optimize the interior, the Pro 4.0 package provides enough material to insulate, for example, all four doors, the trunk, and the side panels. This results in a comprehensive improvement of your vehicle's acoustic properties.

What does the mechanical loss factor at 200 Hz mean for the Pro 4.0 mats?

The mechanical loss factor at 200 Hz, specified for the Pro 4.0 mats from Vibrofiltr, is 0.6. This value describes the damping efficiency of the material and indicates how well the material is able to absorb vibrations and convert them into heat. A higher loss factor means better damping efficiency and thus more effective noise and vibration reduction. Particularly in the frequency range around 200 Hz, which is relevant for many everyday noises, this value demonstrates the high performance of the mats in sound and vibration control, ideal for applications in cars.

How stable is the insulation in cold and low temperatures?

The Vibrofiltr Pro 4.0 mats offer excellent stability at low temperatures, as the material is designed to maintain its adhesive strength even in cold environments. The special butyl mixture ensures a lasting bond and prevents the mats from falling in cold conditions. Especially in winter conditions, where common materials may reach their limits, the damping efficiency of the Pro 4.0 mats remains consistently high. This property is particularly important for the long-term reliability of the insulation in climatically challenging regions or under low sunlight exposure.

How can I improve vibration damping through multilayer application of the Pro 4.0?

Vibration damping can be significantly enhanced by multilayer applications of the Pro 4.0 aluminum butyl mats. The excellent adhesive strength of the mats allows for multiple layers to be applied on top of each other, improving damping for vibrations and resonances. The installation remains straightforward, as no heating of the mats is necessary. The first layer serves as the base damping layer, while each additional layer amplifies the damping efficiency and increases the mechanical loss factor. Thanks to the 4 mm thick structure, each layer is strong enough to absorb vibrations and effectively isolate noise, which is particularly crucial in acoustically sensitive vehicle areas.

Which areas in the vehicle are particularly suitable for the Pro 4.0?

The Pro 4.0 aluminum butyl mats are highly adaptable and are excellent for use in various vehicle areas such as doors, roofs, engine partitions, wheel arches, trunks, and hoods. These areas benefit from a significant reduction in noise and vibrations thanks to the thick butyl mixture and the reinforcing aluminum layer. Particularly in areas with high body sound levels, the damping efficiency is noticeably improved. The flexibility and adhesive strength of the mats allow for seamless adaptation to the metal structures, reducing noise generation and acoustically optimizing the driving experience.
