Ground Zero GZFH 1.50/1.50 ANL/MANL

fuse holder

39,00€
39,00€ 39,00€
including VAT. , possibly plus shipping

Highlights

  • 50 mm² input and output, solid anodized copper, screw terminals.
  • Includes plastic cover, provides additional security, ANL/Mini-ANL compatible.
  • Recommended fuse values: 160 A optimal, 200 A maximum for 50 mm².
Piece
Available for immediate delivery to – in 1-2 Tagen bei Dir

Sparoptionen

Nur 37,05€ mit  5% Skonto bei Vorkasse.

Günstiger gesehen? Wir ziehen mit - jetzt Preis melden!

Rabatt gewünscht? jetzt persönliches Angebot sichern!
Ground Zero-GZFH 1.50/1.50 ANL/MANL-Sicherungshalter-masori-kaufen
39,00€
39,00€ 39,00€

GZFH 1.50/1.50 ANL/MANL fuse holder von Ground Zero

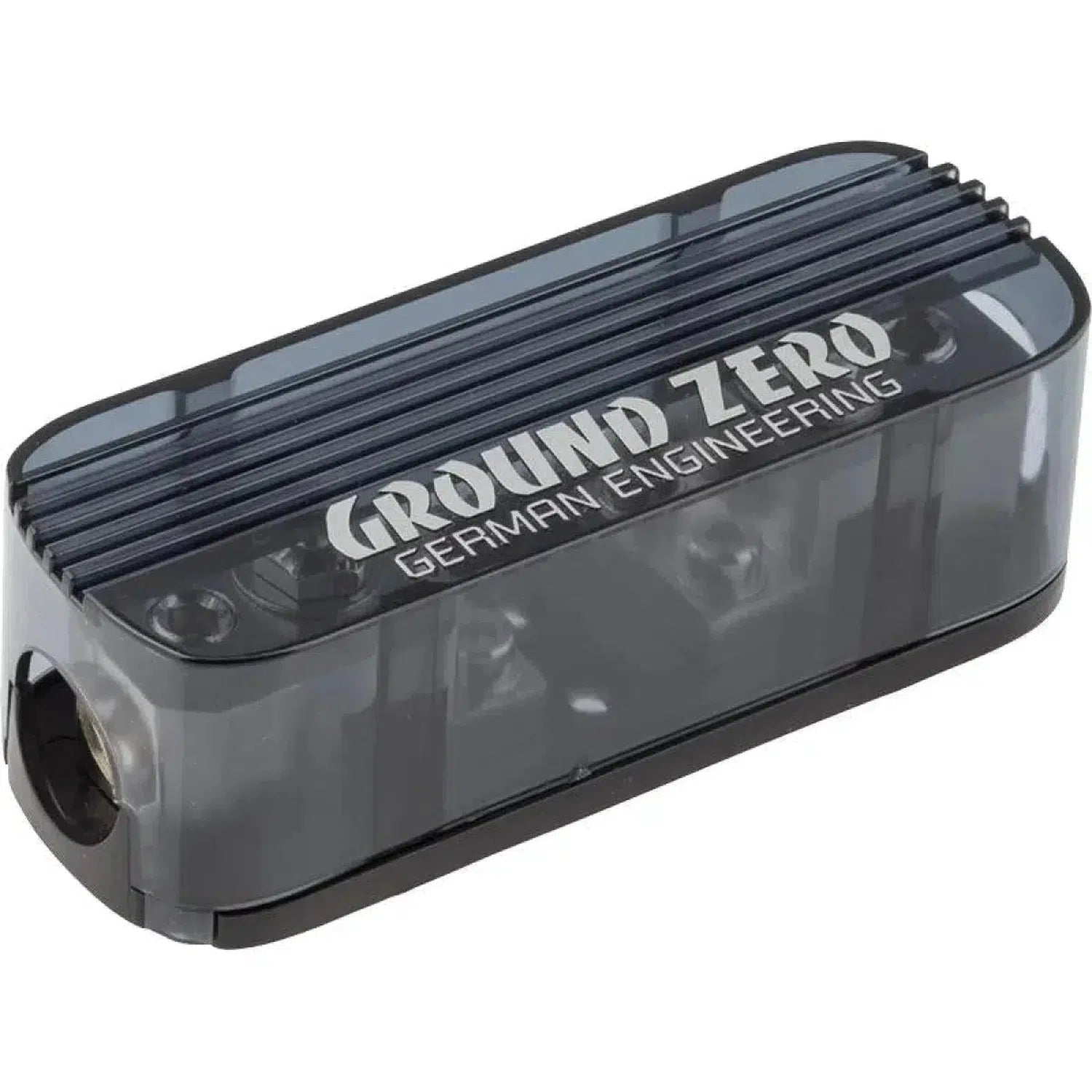

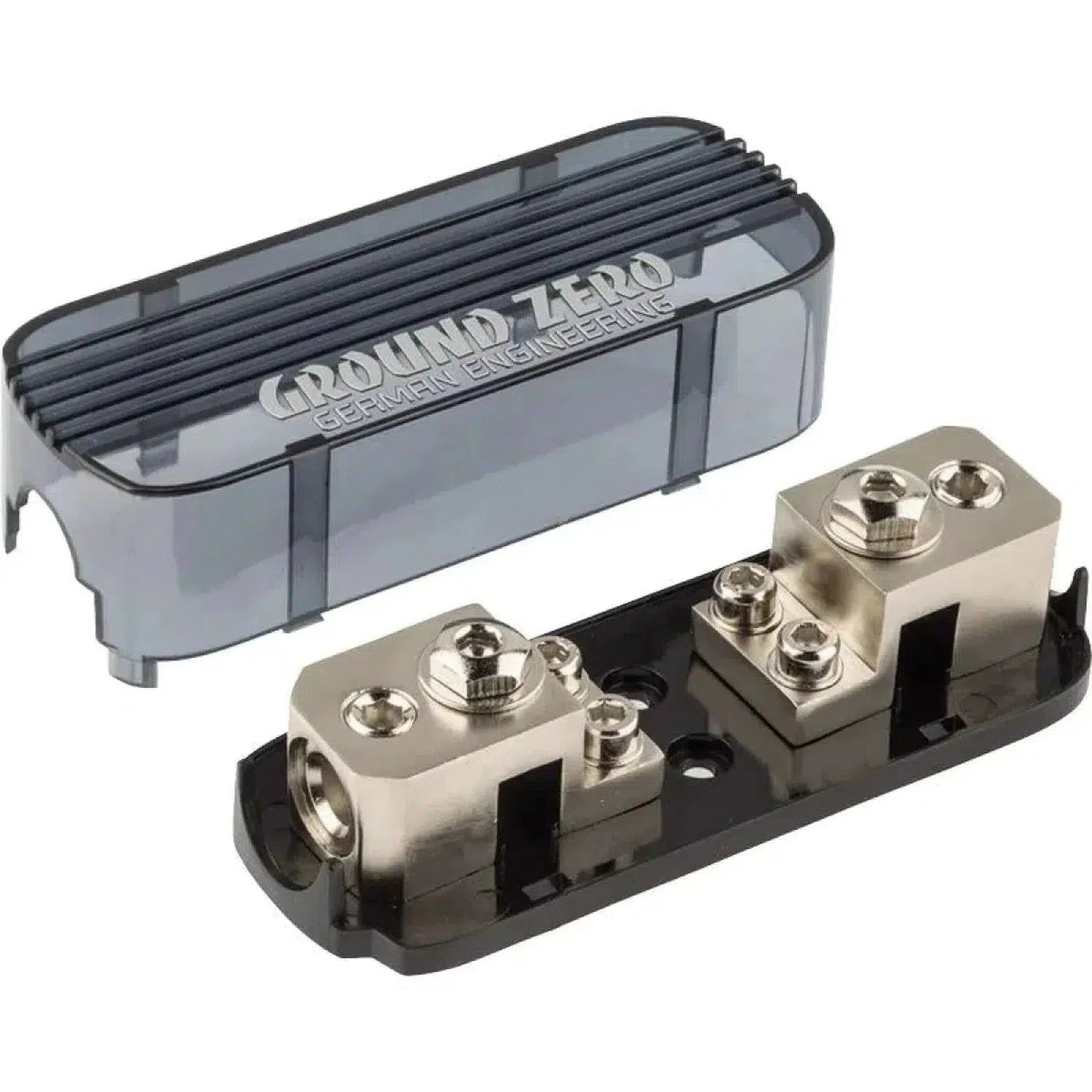

Discover the fuse holder GZFH 1.50/1.50 ANL/MANL, manufactured by Ground Zero. This solid ANL / Mini ANL fuse holder impresses with its screw connections and features both a 50 mm² input and output. It is made of anodized copper and is characterized by an additional plastic cover. As a special advantage, the recommended fuse values are also listed, which vary depending on the cable cross-section and provide optimal to maximum fuse values.

features

  • ANL or Mini-ANL fuse holder
  • 50 mm² input and output
  • Massive anodized copper
  • Including plastic cover
  • screw connections

Recommended Security Values

cable cross-section optimal
collateral value		 maximal
collateral value
1.5 mm² 10 A 15 A
2.5 mm² 20 A 25 A
4.0 mm² 25 A 30 A
6.0 mm² 35 A 40 A
10 mm² 50 A 60 A
16 mm² 70 A 80 A
20 mm² 90 A 100 A
25 mm² 100 A 125 A
35 mm² 125 A 150 A
50 mm² 160 A 200 A
70 mm² 200 A 250 A
95 mm² 250 A 300 A

Welche Sicherungswerte sind für unterschiedliche Kabelquerschnitte beim GZFH 1.50/1.50 ANL/MANL empfohlen?

The fuse holder GZFH 1.50/1.50 ANL/MANL from Ground Zero supports a variety of cable cross-sections with appropriate fuse ratings. For 1.5 mm² cables, the optimal fuse rating is 10 A and the maximum is 15 A. For 2.5 mm², it is 20 A and 25 A respectively. For 4.0 mm², 25 A is optimal and 30 A is the maximum recommended. These values increase, so for 35 mm², an optimal value of 125 A and a maximum of 150 A is provided, and for 50 mm² cables, an optimal value of 160 A with a maximum of 200 A is specified. Even 95 mm² cables can be used, for which the optimal fuse rating is 250 A.

Welche Materialien kommen beim GZFH 1.50/1.50 ANL/MANL Sicherungshalter zum Einsatz?

In the fuse holder GZFH 1.50/1.50 ANL/MANL, Ground Zero uses anodized copper, which is particularly known for its excellent conductive properties. The anodization provides additional protection against corrosion, contributing to the longevity of the product. Additionally, the fuse holder is equipped with a robust plastic cover that offers extra protection and reduces the visibility of the fuse. Screw connections ensure that the cables remain securely and stably connected. This choice of materials emphasizes the robustness and reliability required for demanding applications.

Wie werden die Schraubanschlüsse des GZFH 1.50/1.50 ANL/MANL verwendet?

The fuse holder GZFH 1.50/1.50 ANL/MANL is equipped with thoughtfully designed screw connections that allow for easy installation and maintenance. These connections enable the secure fixation of cables with a cross-section of up to 50 mm². It is important to carefully strip the cable ends before installation to ensure optimal contact. A solid connection is achieved by tightening the screws firmly without damaging the copper. This guarantees reliable power transmission and minimizes electrical resistance, which is crucial for the performance of the fuse block.

Welche Funktion hat die Kunststoff-Abdeckung beim GZFH 1.50/1.50 ANL/MANL?

The plastic cover of the fuse holder GZFH 1.50/1.50 ANL/MANL protects against external influences and minimizes the risk of short circuits due to accidental contact with foreign objects. The cover is particularly advantageous for maintaining the integrity of the fuses and providing additional protection for the surrounding components. In addition to its protective function, the use of plastic contributes to weight reduction and easy handling of the fuse holder. This facilitates installation in the vehicle, especially in tight or hard-to-reach areas, and ensures clean and safe wiring.

Wie groß sind der Eingang und Ausgang des GZFH 1.50/1.50 ANL/MANL Sicherungshalters?

The fuse holder GZFH 1.50/1.50 ANL/MANL from Ground Zero supports cables with a maximum cross-section of 50 mm² at both the input and output. This generous sizing allows for the use of appropriate cable cross-sections even with higher current demands. The advantage of this specification lies in its flexible application possibilities and the ability to safely conduct high currents. This is particularly important for high-performance applications where stable and reliable contacts are essential to ensure a consistent power supply without loss of performance.

Kann der GZFH 1.50/1.50 ANL/MANL in verschiedenen Fahrzeugmodellen installiert werden?

Yes, due to the flexible design of the GZFH 1.50/1.50 ANL/MANL, this fuse holder can be easily installed in many vehicle types. Its compact dimensions and the 50 mm² cable entry ensure that it fits in most standard installation areas. However, it is important to check the available installation spaces in the respective vehicle model in advance to ensure a smooth installation. Since no specific vehicle brands are mentioned, one should always ensure that there is enough space for secure mounting and that the installation location remains easily accessible.

Was ist der Vorteil von ANL- und Mini-ANL-Sicherungen im GZFH 1.50/1.50 ANL/MANL?

The fuse holder GZFH 1.50/1.50 ANL/MANL is designed to accommodate both ANL and Mini-ANL fuses, providing high flexibility in circuit protection. ANL fuses are known for their ability to safely protect high currents, while Mini-ANL fuses are more compact and can be used in tighter spaces. The choice between these two types allows the fuse holder to be tailored to the specific requirements of a project without compromising functionality. This versatility makes the GZFH 1.50/1.50 suitable for a variety of applications.

Wie beeinflusst das eloxierte Kupfer des GZFH 1.50/1.50 ANL/MANL die Leistung?

The anodized copper used in the fuse holder GZFH 1.50/1.50 ANL/MANL plays a crucial role in the reliability and performance of the product. Copper is known for its excellent electrical conductivity, which maximizes the efficiency of current flow and minimizes voltage losses. Anodizing provides additional corrosion protection, which is particularly advantageous in humid or aggressive environments. This significantly increases the lifespan of the fuse holder while ensuring that the electrical contacts remain stable and reliable over time.

Warum sind die empfohlenen Sicherungswerte beim GZFH 1.50/1.50 ANL/MANL wichtig?

The recommended fuse values of the GZFH 1.50/1.50 ANL/MANL are essential to ensure optimal safety and performance of the electrical system. These values, which are specified according to cable cross-section, help to effectively protect circuits against overloads. Inadequately sized fuses can lead to overheating and potential damage, while fuses that are too large do not provide sufficient protection. Ground Zero specifies specific values for various cables from 1.5 mm² to 95 mm² to maximize the lifespan of the entire system and minimize potential safety risks.

Gibt es besondere Montagehinweise für den GZFH 1.50/1.50 ANL/MANL Sicherungshalter?

For the safe installation of the fuse holder GZFH 1.50/1.50 ANL/MANL, it is important to carry out the installation in a well-ventilated and accessible area. Ensure that the wiring is securely connected to the screw terminals to guarantee a safe flow of current. The plastic cover should be carefully attached after installation to provide additional protection for the fuses. Avoid mounting the fuse holder near heat sources or moving parts to prevent damage or malfunctions. These factors contribute to the long-term reliability and safety of the system.

Herstellerinformation/verantwortliche Person

Ground Zero GmbH
Erlenweg 25
85658 Egmating, Germany

Tel +49 (0)8095 873 830

E-Mail: info@ground-zero-audio.com

Produkt Spezifikationen

Hersteller

Ground Zero

Produkttyp

Fuse holder

Merkmale

  • Highlights

    • 50 mm² input and output, solid anodized copper, screw terminals.
    • Includes plastic cover, provides additional security, ANL/Mini-ANL compatible.
    • Recommended fuse values: 160 A optimal, 200 A maximum for 50 mm².

  • Uvp

    39

Gewicht

0.5 kg

Konfiguratoren

Kürzlich angesehene Produkte

Masori-Komplettanlage Car HiFi mit DSP-Einbauservice-masori-kaufen
Masori-Akustikdämmung & Hitzeisolierung Dachhimmel-Einbauservice-masori-kaufen

Direkt einbauen lassen!

  • Einzelne Produkten oder ganze Systeme
  • Dämmung von Türen und mehr
  • Einmessung und Systemeinstellung, sowie Fehlersuche
  • Und vieles mehr in unserem Einbauservice in Frankfurt (Oder)
Erfahre mehr!

Deine Vorteile bei Masori

Buy Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holders online at Masori with lowest price guarantee

The Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder is an essential item for any car hi-fi enthusiast who values ​​reliable and safe wiring. With its solid anodized copper construction, it provides a stable and durable connection for your audio systems. The screw terminals ensure high integrity and are easy to install, while the optional plastic cover offers additional protection. Choose this fuse holder, which is perfectly adaptable with a 50 mm² input and output. With its lowest price guarantee, Masori always offers the best price for the Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder, guaranteeing unbeatable deals.

Technical performance of the Ground Zero fuse holder with ANL and Mini-ANL

The Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder offers flexible support for ANL and Mini-ANL fuses. This flexibility is particularly advantageous in more complex car hi-fi systems that require different fuse ratings. With 50 mm² inputs and outputs, the fuse holder is strong enough to seamlessly integrate even high-performance components. Compared to other fuse holders on the market, the solid copper insert offers superior conductivity, reducing overall resistance and increasing efficiency. Using less copper here would compromise conductivity, which could negatively impact the performance of your audio system.

Anodized copper for optimal conductivity

The anodized copper of the Ground Zero GZFH 1.50/1.50 fuse holder was not chosen by chance. Copper is known for its excellent electrical conductivity, which is crucial for minimizing power losses. The anodized coating also protects the copper from oxidative damage, thereby extending the lifespan of the fuse holder and ensuring that its conductivity is maintained over time. A non-anodized material could wear out more quickly and thus lead to performance degradation.

Ground Zero dimensioned input and output terminals

The fuse holder's 50 mm² input and output terminals ensure excellent compatibility with large cable cross-sections, which are particularly necessary for extremely powerful audio systems. Smaller cross-sections, for example, would result in power losses or increased heat generation, which could compromise safety. Ground Zero therefore relies on large spacers to ensure stable current flow and protect your cabling from heat buildup. Comparison with competing products shows that such large terminals are necessary in particularly powerful systems and can certainly be considered top-notch.

Plastic cover for more safety in the vehicle interior

The included plastic cover provides an additional layer of protection against accidental short circuits or damage caused by external influences. This well-thought-out component not only protects the fuse holder but also the connected devices, forming an important safety mechanism within the setup. A cover is not always standard for fuse elements in the car hi-fi market, thus giving the Ground Zero fuse holder a safety advantage.

Recommended fuse values ​​and cable cross-section adjustment for optimal performance

The Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder includes detailed fuse rating specifications, ranging from optimal to maximum values, to allow for a customized setup tailored to your needs. For example, with a 10 mm² cable cross-section, you can use an optimal fuse rating of 50 A, with a maximum value of 60 A. This wide range allows you greater flexibility when installing your audio system. Selecting fuse ratings that are too low or too high risks compromising the protection of your electronic components and jeopardizing the overall stability of your system.

Robust screw terminals for permanent connections at Ground Zero

Thanks to the sturdy screw terminals, the Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder offers reliable operation. These terminals prevent the cables from coming loose under vibration or mechanical stress. A poorly constructed connection could increase the risk of power outages or even damage. The screw terminals of the Ground Zero fuse holders are designed to ensure a robust and durable connection that is also easy to handle.

Important decisions when integrating the Ground Zero fuse holder

Selecting the appropriate fuse for your car hi-fi setup is a crucial step that can significantly impact both your sound quality and system stability. Improper installation conditions could result in performance degradation or a loss of protection. Ground Zero offers on-site installation in Frankfurt (Oder) to ensure optimal integration of your car hi-fi system. Expert support (FAQ & Help) is also available for in-depth questions.

Valuable backup information and its relevance for your setup

The detailed recommended fuse ratings of the Ground Zero GZFH 1.50/1.50 ANL/MANL fuse holder allow for precise customization to your individual needs. For example, you can select a maximum fuse rating of 250 A for a 70 mm² cable cross-section, which is ideal for particularly power-intensive systems. Such high ratings provide protection against voltage and current spikes. However, higher fuse ratings than recommended could reduce the protective effect. Check out our Audio Blog for more tips and tricks for your car hi-fi setup.
