  3. Prima AP 6.5P

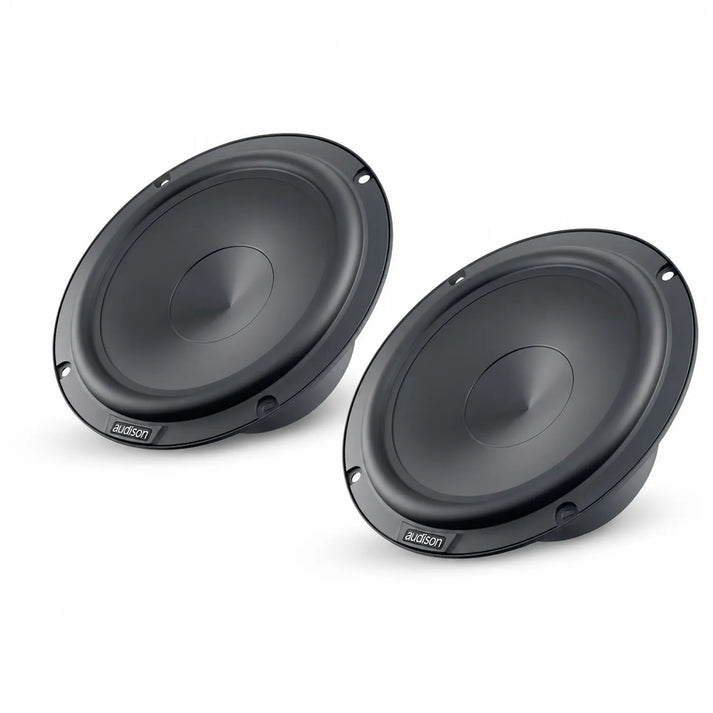

Audison Prima AP 6.5P 6.5" (16,5cm) Mid-Woofer
SKU:  AP-6.5P
EAN:  8018823135214

16 Reviews

110 Watt

Prima AP 6.5P

SKU:  AP-6.5P
EAN:  8018823135214

16 Reviews

Technical Highlights

  • 330 W peak power, 32 mm CCAW voice coil, high power handling.
  • Large stroke, dynamic tips, compact dimensions.
  • Optimized parameters, perfect control, easy installation.
  • More technical details
€109,00
€109,00 €109,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Prima AP 6.5P-6.5" (16,5cm) Tiefmitteltöner-masori-kaufen
€109,00
€109,00 €109,00

Prima AP 6.5P by Audison

The Audison Prima AP 6.5P is a 6.5-inch (16.5 cm) mid-bass driver with a continuous power handling of 110 W and a peak power handling of 330 W. The driver operates at 4 Ohms and covers a frequency range of 50–5,000 Hz. It features a 32 mm CCAW voice coil with dimensions of 32 x 14 mm, as well as a magnetic structure. Xmax is 5.6 mm, and the newly designed basket reduces air flow resistance while maintaining compact dimensions. The cone is made of water-resistant treated paper, and the efficiency is 92.5 dB. Electroacoustic parameters: Fs 60 Hz, Vas 11.4 l, Qts 0.55, Qes 0.6, Qms 7.6, Re 3.1 Ohm, Le 0.29 mH, BL 5.35 T·m, Mms 14.6 g, Cms 0.47 mm/N, D 132 mm. Dimensions: A 165 mm, B 141 mm, C 75 mm, D 66.5 mm; weight 1.45 kg.

Features
  • 6.5-inch (16.5 cm) mid-bass driver
  • Continuous power handling 110 W
  • Peak power handling 330 W
  • Impedance 4 Ohms
  • Frequency range 50–5,000 Hz
  • Voice coil 32 mm, CCAW, dimensions 32 x 14 mm
  • Xmax 5.6 mm
  • Cone: water-resistant treated paper cone
  • Newly designed, compact basket with reduced air flow resistance
  • Increased excursion of the moving group
  • Optimized electroacoustic parameters for OEM installations
  • Magnetic group size for control even at maximum cone excursion
Technical Specifications
  • Efficiency 92.5 dB
  • Re 3.1 Ohm
  • Fs 60 Hz
  • Vas 11.4 l
  • Mms 14.6 g
  • Cms 0.47 mm/N
  • BL 5.35 T·m
  • Qms 7.6
  • Qes 0.6
  • Qts 0.55
  • Le 0.29 mH
  • D 132 mm
  • Dimension A 165 mm
  • Dimension B 141 mm
  • Dimension C 75 mm
  • Dimension D 66.5 mm
  • Weight 1.45 kg

Your benefits at Masori

Audison Prima AP 6.5P Datasheet

Open datasheet

Frequently Asked Questions about Prima AP 6.5P

What is the power of the Prima AP 6.5P?

The Audison Prima AP 6.5P has a peak power of 330 Watts and a continuous power rating of 110 Watts. Thanks to its robust construction, including a 32 mm CCAW voice coil, it handles high loads effortlessly. The speaker's high efficiency, combined with its ability for large excursions, allows it to manage dynamic peaks without compression. With an efficiency of 92.5 dB and an impedance of 4 Ohms, the speaker delivers impressive performance optimized for demanding OEM installations. Especially if you prefer high levels, the AP 6.5P provides the necessary power.

What are the dimensions of the Audison Prima AP 6.5P?

The Audison Prima AP 6.5P measures 165 mm in diameter, which is approximately 6.5 inches. The other dimensions are crucial for installation: dimension B is 141 mm, dimension C is 75 mm, and dimension D is 66.5 mm. These compact dimensions are specifically designed to facilitate OEM installations while still ensuring a large excursion for optimal sound. The tight diameter allows for simplified integration into existing vehicle structures. Therefore, you can easily install this speaker in many vehicle models, provided the mounting openings are compatible.

What materials are used in the Prima AP 6.5P?

The Prima AP 6.5P uses several high-quality materials to ensure both durability and acoustic excellence. The cone is made from water-repellent treated paper, which minimizes distortion and resists moisture. The voice coil is made from copper-clad aluminum wire (CCAW) to allow for higher power handling and improved thermal efficiency. Additionally, the optimized basket, which reduces airflow resistance, enhances acoustic performance. The choice of materials helps the speaker perform optimally even under demanding conditions.

What are the acoustic properties of the Prima AP 6.5P?

The Audison Prima AP 6.5P is characterized by a variety of electro-acoustic properties. With a frequency response of 50 to 5000 Hz, it offers a wide sound spectrum. The resonance frequency (Fs) is at 60 Hz, indicating powerful bass reproduction. The Qts value of 0.55 and the Vas value of 11.4 liters reflect a balanced design that combines precision and dynamics. The high BL value of 5.35 T•m contributes to controlled diaphragm movement, while the speaker remains acoustically efficient with a total weight of 1.45 kg. These parameters are ideal for music lovers.

Can the Prima AP 6.5P be easily installed in OEM systems?

The Audison Prima AP 6.5P has been specifically designed for OEM installations. The speaker has compact dimensions that allow for seamless integration into existing vehicle speaker systems. Note the measurements: With a main diameter of 165 mm and a depth of no more than 75 mm, it fits into many standard mounting openings. The optimized magnetic design and carefully selected materials contribute to easy installation without the need for major adjustments. The compact basket size facilitates handling even in tight installation spaces, which is particularly useful for DIY enthusiasts.

What Thiele-Small parameters does the Prima AP 6.5P have?

The Audison Prima AP 6.5P features specific Thiele-Small parameters that define its acoustic performance. The Qes value is 0.6, indicating efficient electrical control. With a Qms of 7.6, the speaker achieves a mechanical quality that minimizes resonances. The Qts value of 0.55 shows a balanced mix of electrical and mechanical control. Cms is 0.47 mm/N, indicating soft suspensions, ideal for high excursions. The Vas value is 11.4 liters, which is significant for the volume of air affected in closed systems. All these parameters ensure ideal sound.

What impedance does the Prima AP 6.5P have?

The Audison Prima AP 6.5P has an impedance of 4 Ohms, ideal for compatibility with most car audio systems and amplifiers. This impedance design allows for optimal power delivery without the risk of overload or inefficiency. The low Re of 3.1 Ohms supports adaptation to common amplifiers designed for 4-Ohm outputs. This impedance is standard for speakers in the automotive sector to ensure harmony between the various components of the audio system. This means you do not need to make any special adjustments during installation.

What is the efficiency of the Prima AP 6.5P?

The Audison Prima AP 6.5P speaker has an efficiency of 92.5 dB, which means it achieves a high volume with relatively low power amplification. This high SPL value (Sound Pressure Level) represents efficient sound amplification and is particularly advantageous in vehicles where speakers often have to compete with higher background noise. The design with the CCAW voice coil plays a crucial role, as it increases efficiency and resistance to thermal stress. This efficiency makes the speaker ideal for users who want maximum volume in their car without needing a larger amplifier.

What is the dynamic behavior of the Prima AP 6.5P?

The Audison Prima AP 6.5P is known for its superior dynamic behavior, achieved through the large maximum excursion and optimized cone material. The increased displacement of the moving group allows the speaker to realize fast and large movements of the diaphragm, promoting a more dynamic sound image. The water-repellent treated paper used ensures that the sound-absorbing properties of the speaker are maintained, even at high excursions. The effect is a clear reproduction of musical content with a high dynamic range, as preferred in live recordings or classical pieces.

What frequencies can the Prima AP 6.5P reproduce?

The Prima AP 6.5P is designed to reproduce frequencies in the range of 50 Hz to 5000 Hz. This covers a large part of the human hearing range and thus allows for excellent reproduction of deep bass as well as midrange tones. The frequency response has been optimized based on extensive simulations to make both music and speech sound clear and natural. This setting is particularly valuable for vehicle environments, where bass precision and vocal clarity are important. Continuous performance at low frequencies without audible distortion is ensured through technological innovation and the selection of high-quality materials.
