Audison Forza AF M1D 1-Channel Amplifier
SKU:  FORZAAFM1D
EAN:  8018823136778
1200 Watt

Forza AF M1D

SKU:  FORZAAFM1D
EAN:  8018823136778

Technical Highlights

  • Impressive power: 1200 W @ 1Ω, 1000 W @ 2Ω, 600 W @ 4Ω.
  • Efficient at 81% efficiency, THD+N is only 0.1%.
  • Minimum load impedance of 1Ω, damping factor reaches 140.
  • More technical details
€600,00
€600,00 €600,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €50,00 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Forza AF M1D-1-Kanal Verstärker-masori-kaufen
€600,00
€600,00 €600,00

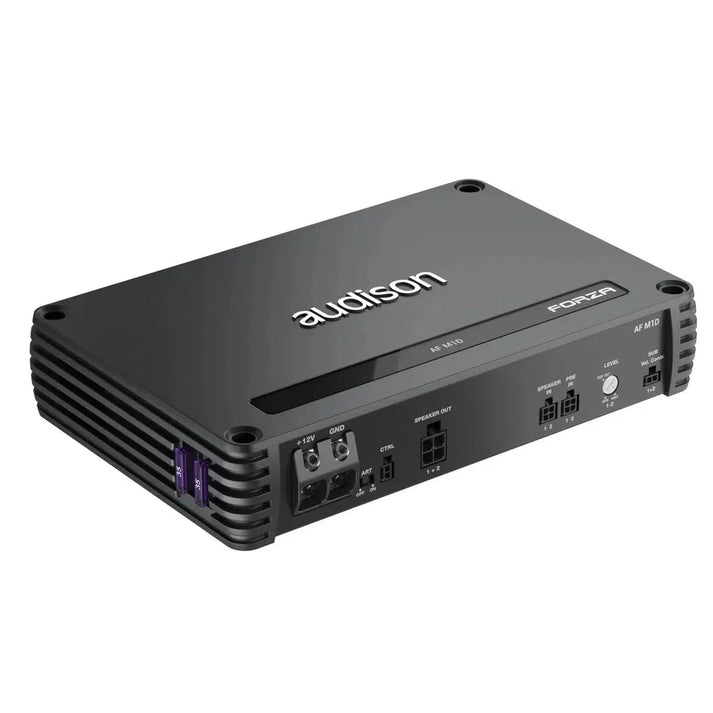

Forza AF M1D by Audison

The Audison Forza AF M1D is a 1-Channel Amplifier with continuous output power of 600 W at 4 Ω, 1000 W at 2 Ω, and 1200 W at 1 Ω. The minimum load impedance is 1 Ω, the bandwidth is 10–500 Hz, the damping factor at 1 kHz and 4 Ω is 140, and the distortion THD+N at 1 kHz, 4 Ω, and 70% rated power is 0.1%. The S/N ratio is 105 dBA (A-weighted at 1 V input, rated power) and 80.5 dBA referenced to 1 W output. The rated voltage is 11–15 VDC, the pulse operating voltage is 6.5–17.5 VDC; the idle current is 1.3 A, the standby current is 0.005 mA, and the consumption at 14.4 VDC at minimum load impedance is 65 A. There are Pre-In and Speaker-In inputs available with input sensitivities of 0.6–6 VRMS (Pre-In) and 2.2–22 VRMS (Speaker-In), plus Remote IN 4–15 VDC and Remote OUT 6.5–15 VDC. ART allows automatic on and off via Speaker-In at 1.5 VDC, and an optional SUB remote control allows volume adjustment of ±12 dB. The dimensions are 240 x 47 x 156 mm with a weight of 2.04 kg, the operating temperature range is 0–55 °C, and the efficiency at rated power is 81% (14.4 VDC, 1% THD, 4 Ω).

Features
  • 1-Channel Amplifier
  • Continuous output power RMS 1 channel @ 4 Ω: 600 W
  • Continuous output power RMS 1 channel @ 2 Ω: 1000 W
  • Continuous output power RMS 1 channel @ 1 Ω: 1200 W
  • Minimum load impedance: 1 Ω
  • Efficiency at rated power 14.4 VDC, 1% THD, 4 Ω: 81%
  • Inputs: Pre-In / Speaker-In
  • ART automatic on/off via Speaker-In 1.5 VDC
  • Optional SUB remote control volume adjustment ±12 dB
  • Dimensions W x H x D: 240 x 47 x 156 mm
  • Weight: 2.04 kg
  • Operating temperature range: 0–55 °C
Technical Specifications
  • Rated voltage 11–15 VDC / 2 x 35 A
  • Pulse operating voltage: 6.5–17.5 VDC
  • Idle current: 1.3 A
  • Standby current: 0.005 mA
  • Consumption at 14.4 VDC, minimum load impedance Max Musical Power: 65 A
  • Remote IN: 4–15 VDC (1 mA)
  • Remote OUT: 6.5–15 VDC (150 mA)
  • Distortion THD+N @ 1 kHz, 4 Ω, 70% rated power: 0.1%
  • Damping factor @ 1 kHz, 4 Ω, 2 VRMS: 140
  • Bandwidth at -3 dB: 10–500 Hz
  • S/N ratio A-weighted @ 1 V input, rated power, master input: 105 dBA
  • S/N ratio ref. 1 W output: 80.5 dBA
  • Input sensitivity Pre-In: 0.6–6 VRMS
  • Input sensitivity Speaker-In: 2.2–22 VRMS

Your benefits at Masori

Frequently Asked Questions about Forza AF M1D

What operating voltage does the Forza AF M1D support?

The Forza AF M1D from Audison is designed to operate with different voltages. It supports a nominal voltage of 11-15 VDC for regular operation and has an operating voltage in pulse mode of 6.5-17.5 VDC. In standby mode, the power consumption is extremely low at only 0.005 mA, which is particularly advantageous for energy-saving setups. This flexibility in voltage adjustment allows the amplifier to adapt to various vehicle environments, making it a versatile option for a wide range of audio systems.

How efficient is the Forza AF M1D amplifier in operation?

With an impressive efficiency of 81% at a nominal power of 14.4 VDC, 1% THD, and a 4Ω load, the Forza AF M1D from Audison offers remarkable performance. This high efficiency means that the amplifier converts a large portion of the supplied energy into power efficiently, resulting in less energy lost as heat. Especially for discerning music lovers who focus on sound quality and energy efficiency, this amplifier is a top choice.

What output power does the Forza AF M1D provide?

The Forza AF M1D from Audison delivers an impressive continuous output power of up to 1200 watts at an impedance of 1 ohm. At an impedance of 4 ohms, the output power is 600 watts, and at 2 ohms, it is 1000 watts. This power capability makes the amplifier ideal for high-power applications, especially when it comes to driving large Subwoofers or a demanding Hi-Fi system. This way, you can enjoy clear and undistorted sound even at higher volumes.

How does the input impedance of the Forza AF M1D affect sound performance?

The Forza AF M1D is designed for a minimum load impedance of 1 ohm, which means it is capable of delivering stable performance even at low impedances. This is particularly relevant when driving speakers with low impedance, as it increases the load on the power amplifier. Additionally, a proper match to the impedance of the connected speakers ensures that the amplifier operates efficiently and keeps distortion to a minimum, thereby ensuring high sound fidelity.

What signal-to-noise ratio does the Forza AF M1D offer?

The Audison Forza AF M1D offers a signal-to-noise ratio of 105 dBA, measured at nominal power and with A-weighting at the master input. This high signal-to-noise ratio guarantees that the noise is insignificant compared to normal playback performance, resulting in clean and clear sound. A good signal-to-noise ratio is crucial for perceiving subtle details in the soundstage and ensuring a musically rich experience, especially at low listening levels.

What frequency range does the Forza AF M1D cover?

The Audison Forza AF M1D has a frequency range of 10 Hz to 500 Hz at -3 dB. This frequency coverage makes the Amplifier particularly suitable for Subwoofer configurations, as it reproduces deep bass tones cleanly. The bandwidth is optimally designed for the demands of high-performance operation with Subwoofers, allowing bass notes to be reproduced precisely and powerfully. This makes the Amplifier ideal for music genres that rely on strong bass reproduction, such as electronic music or hip-hop.

What input options does the Forza AF M1D offer?

The Forza AF M1D supports both Pre-In and Speaker-In inputs. The input sensitivity of the Pre-In ranges from 0.6 to 6 VRMS, while the Speaker-In sensitivity ranges from 2.2 to 22 VRMS. This flexible input configuration allows the Amplifier to be integrated with a variety of audio devices and setups, whether with a car radio or a separate hi-fi system. The different sensitivity ranges ensure that the Amplifier can be optimally matched to the output signal of the source.

What are the dimensions and weight of the Forza AF M1D?

The Forza AF M1D has compact dimensions of 240 x 47 x 156 mm (9.44 x 1.85 x 6.14 inches) and a weight of 2.04 kg. This handy size and light weight make installation in the vehicle particularly easy, even in tight spaces. The placement can be arranged flexibly, allowing the Amplifier to be stored, for example, under a seat or in a trunk without taking up much space. Such flexible installation options make it the ideal choice for any vehicle.

What operating conditions are optimal for the Forza AF M1D?

The Forza AF M1D operates within an operating temperature range of 0 °C to 55 °C (32 °F to 131 °F), making it ideal for most climatic conditions that a vehicle may be exposed to. It is important to operate this Amplifier within the specified temperature range to ensure optimal performance and longevity. At temperatures beyond these values, performance losses or damage to the device may occur, so these operating guidelines are essential for maintaining the Amplifier's function.

What settings does the optional SUB remote control offer?

The optional SUB remote control for the Forza AF M1D allows for individual volume control in the range of ±12 dB. This functionality enables you to fine-tune the bass level according to personal taste and the requirements of the playback environment, without affecting the main volume of the audio system. This is particularly useful in situations where the bass needs to be adjusted depending on the music style or preference to maximize the listening experience. A flexible bass adjustment ensures that the lower frequency spectrum is reproduced exactly according to your wishes.
