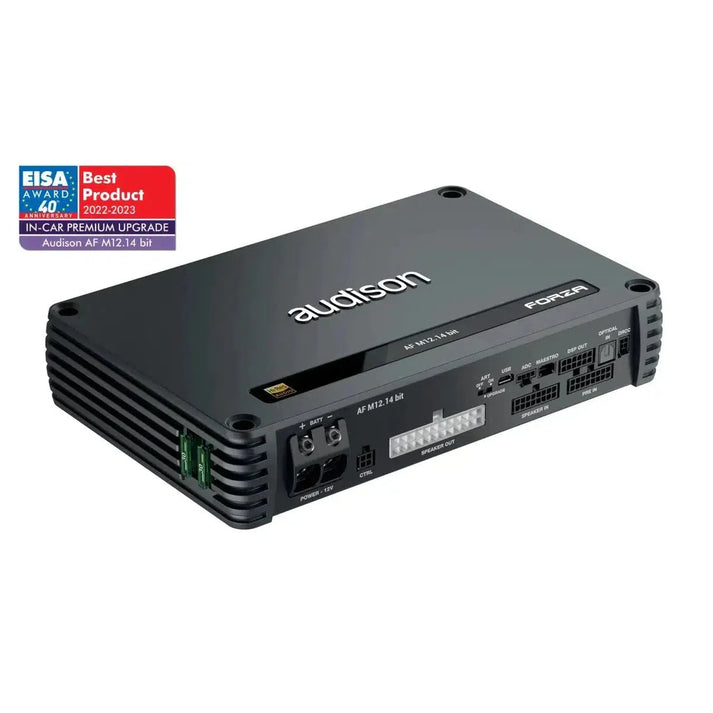

Forza AF M12.14 bit by Audison

The Forza AF M12.14 bit is a 12-Channel DSP Amplifier from Audison with twelve amplified channels based on the latest Audison D-Class. The continuous output power is 60 W x 12 at 4 Ω and 90 W x 12 at 2 Ω; in bridged mode, it delivers 180 W x 6 at 4 Ω, with a total RMS power of 1080 W. A native DSP operates at 24 Bit/96 kHz, extends the audio band up to 40 kHz, and carries a High-Resolution certification. Higher switching frequencies, steeper filtering, and components with higher tolerance are integrated. Support for the Absolute Volume function of the Audison B-CON is included. The efficiency is 80%. Connectivity includes 8 high/low-level inputs, an optical S/PDIF input (max. 192 kHz/24 Bit), two preamp outputs, and a subwoofer output with 5 V RMS; a total of up to 14 DSP-controlled output channels are available. The dimensions are 240 x 47 x 156 mm, and the weight is 2.04 kg.

Features
  • 12-Channel DSP Amplifier
  • Audison D-Class (latest generation)
  • 12 amplified channels; up to 14 DSP-controlled output channels (12 amplified, 2 preamp outputs)
  • 60 W x 12 at 4 Ω (RMS)
  • 90 W x 12 at 2 Ω (RMS)
  • 180 W x 6 at 4 Ω (RMS, bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12)
  • Total RMS power 1080 W
  • Efficiency 80%
  • DSP with 24 Bit/96 kHz, audio band up to 40 kHz, High-Resolution certification
  • Adjustable Crossover
  • 8 high-level inputs; 8 low-level inputs
  • Pre-In 0.6 – 6 VRMS (15 kΩ impedance)
  • Speaker inputs 2.2 – 22 VRMS (5 Ω impedance)
  • Optical S/PDIF digital input, max. 192 kHz/24 Bit; optionally optical/coaxial with F2O card
  • Preamp outputs: 2
  • Subwoofer output (RCA Pre Out): 5 V RMS
  • Supports Absolute Volume function of the Audison B-CON
  • Size: 240 x 47 x 156 mm
  • Weight: 2.04 kg
Technical Specifications
  • Channels: 12
  • Amplifier class: D-Class
  • Supply voltage / Fuse: 11 – 15 VDC / 2 x 30 A
  • Operating voltage of the power supply: 6.5 – 17.5 VDC
  • Idle current: 1.68 A
  • Standby power consumption: 1.7 mA
  • Power consumption @ 14.4 VDC, 2 Ω, Max music power: 45 A
  • Remote IN: 4 – 15 VDC (1 mA)
  • Remote OUT: 6.5 – 15 VDC (150 mA)
  • ART (Auto Turn-On via BTL speaker voltage): 1.5 VDC
  • Distortion THD @ 1 kHz, 4 Ω, 70% rated power: 0.03%
  • Bandwidth @ -1.5 dB: 10 Hz – 42 kHz
  • Damping factor @ 1 kHz, 4 Ω, 2 VRMS: 80
  • S/N ratio (A weighted @ 1 V input) Master input: 98 dBA
  • S/N ratio (A weighted @ 1 V input) Optical input: 105
  • Minimum impedance: 12 channels 2 Ω; 6 channels (bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) 4 Ω
  • CEA: Output power @ 4 Ω, 1% THD+N, 14.4 V: 45 W
  • CEA: S/N ratio (ref. 1 W output): 75.5 dB
  • Digital input: Yes (1 x optical S/PDIF; max. 192 kHz/24 Bit + 1 x optical/coaxial S/PDIF with optional F2O card)
  • Audio DSP: Analog Devices ADAU1467 (96 kHz processing); A/D: 3 x ADAU1978 (4 channels); D/A: ADAU1966A (16 channels), 24 Bit/192 kHz
  • Filter types: Full, High-pass, Low-pass, Band-pass
  • Filter modes and slopes: Linkwitz-Riley @ 12/24/36/48 dB/Oct.; Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.; Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.; Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.; QLP @ 6 dB/Oct.
  • Transition frequency: 20 Hz – 20 kHz
  • Phase control: 0° / 180°, All-pass filter
  • Equalizer for analog input (20 – 20 kHz): 12 biquad + delay
  • Output equalizer: Parametric/Graphic, 15 bands (20 Hz – 20 kHz)
  • Time delay / Delay: 0 – 15 ms
  • Time delay / Distance (converted): 0 – 1371.6 mm and 0 – 5100.32 mm
  • Input/Output: Real-time audio monitor RTA
  • DRC port: Input for DRC AC remote control (optional)
  • ADC port: Management of compatible Audison devices
  • 1-wire and 2-wire: Customizable functions (+12 V activated)
  • PC connection: Micro USB 1.1 / 2.0 / 3.0
  • Software/PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768)
  • Operating temperature range: 0 °C – 55 °C
  • Dimension A: 240 mm
  • Dimension B: 156 mm
  • Dimension C: 47 mm
  • Next-generation bit Drive Software platform
  • Power/Volume ratio: up to 0.68 W RMS/cm³ at 82% efficiency
  • Bridgeable output pairs: 1/2, 3/4, 5/6, 7/8, 9/10, 11/12
  • Expansion card slot: additional 4 analog or 1 digital input
  • Electrical signal analysis for each input channel
  • Acoustic analysis with integration of the frequency response curve into the EQ display
  • Advanced options for signal routing

Your benefits at Masori


Audison Forza AF M12.14 bit Datasheet

Frequently Asked Questions about Forza AF M12.14 bit


What amplifier technology is used in the Audison Forza AF M12.14 bit?

The Forza AF M12.14 bit utilizes Audison's state-of-the-art D-Class amplifier technology, which offers the highest switching frequencies and steeper filtering. The higher tolerance components ensure sound quality that surpasses the Class D standard. With twelve amplified high-fidelity channels, it delivers 60 W per channel at 4Ω and up to 90 W at 2Ω. In bridged mode, it provides 180 W per channel at 4Ω, allowing for flexible power adjustments. This high-end technology ensures audiophile sound quality, as highlighted by its high-resolution certification.

How do the DSP functions affect the sound quality of the Forza AF M12.14 bit?

The integrated DSP operates at 24 Bit/96 kHz and extends the audio bandwidth up to 40 kHz, enabling high-resolution certification. This results in significantly higher sound quality. It uses ADAU1467 along with A/D and D/A converters from Analog Devices to provide impressive sound processing. The DSP functionalities include flexible filter types, such as Linkwitz-Riley and Butterworth, allowing for precise adjustments of the frequency spectrum. Additionally, the time delay of up to 15 ms enables accurate placement of audio sources. This combination ensures crystal-clear, dynamic sound.

What are the key technical parameters of the Forza AF M12.14 bit?

The Forza AF M12.14 bit offers a total power output of 1080 Watts RMS with twelve amplified channels. The continuous output power is 60 W x 12 at 4Ω and 90 W x 12 at 2Ω. The device supports a power supply of 11 - 15 VDC. With a no-load current draw of 1.68 A and standby current draw of 1.7 mA, it is efficient in operation. The high efficiency of 80% defines its performance. The signal-to-noise ratios reach up to 105 dBA at optical inputs, ensuring interference-free audio transmission.

How do I install the Forza AF M12.14 bit in my vehicle?

To install the Forza AF M12.14 bit in your vehicle, you need a space of 240 x 47 x 156 mm. The device's power supply must be between 11 and 15 VDC. The Amplifier is equipped with high and low-level inputs, allowing integration into various audio systems. Ensure that the connections for optical inputs and expansion cards are correctly connected. For optimal performance, the Amplifier should be mounted in a well-ventilated area. Use Audison's user-friendly software to refine the setup.

What audio formats does the Forza AF M12.14 bit support?

The Forza AF M12.14 bit is optimized for playback of high-resolution audio formats, as it operates with a 24 Bit/96 kHz DSP that extends the audio band up to 40 kHz. This ensures that high-resolution audio files are played back losslessly. Thanks to the optical S/PDIF input with a maximum sampling rate of 192 kHz/24 Bit and additional support from optional expansion cards, it allows for flexible integration into specialized audio systems and the use of digital audio formats that maximize sound quality.

Is the Forza AF M12.14 bit compatible with my existing audio system?

The Forza AF M12.14 bit from Audison supports a variety of input options, including 8 high/low-level inputs and an optical Toslink digital input, allowing integration into many existing audio systems. If your audio system has pre-in inputs with a signal strength of 0.6 - 6 VRMS, compatibility is ensured. Make sure that your system's impedance matches the 2Ω or 4Ω output impedances of the Amplifier for optimal performance. The flexible architecture promises seamless integration into your existing setup.

What advantages does the ADT technology in the Forza AF M12.14 bit offer?

The innovative ADT technology from Audison in the Forza AF M12.14 bit significantly enhances audio performance. With a power-to-volume ratio of up to 0.68 Watts RMS/cm³, the Amplifier achieves an efficiency of 82% without compromising sound quality. This technology enables steeper filtering and higher switching frequencies, resulting in a more precise and dynamic sound output. Additionally, the ADT technology ensures improved heat dissipation, allowing the Amplifier to operate in a compact form without overheating.

What are the advantages of a 12-channel Amplifier like the Forza AF M12.14 bit?

A 12-channel Amplifier, like the Forza AF M12.14 bit, offers exceptional flexibility in configuring audio systems. It allows for the operation of multiple speaker zones or the amplification of individual frequency ranges for specialized sound adjustments. Through the bridging options of the channel pairs, the power output can be adjusted, providing versatile applications. This enables audiophile multi-zone control and detailed sound configurations, ideal for complex OEM systems or specialized sound layouts where precise control and excellent sound quality are required.

How do I manage external audio devices with the Forza AF M12.14 bit?

The Forza AF M12.14 bit is equipped with an ADC port through which you can manage compatible Audison devices. The DRC port allows for the use of the optional DRC AC remote control for intuitive control of the Amplifier. Additionally, the Amplifier provides an interface for connecting to PC software that runs on Windows 10 or 11 via Micro USB. This allows for detailed settings to be made through Audison's custom software platform and for monitoring the entire system to achieve optimal performance and sound quality.

What role does the High-Resolution certification play in the Forza AF M12.14 bit?

The High-Resolution certification of the Forza AF M12.14 bit confirms that the Amplifier can efficiently process an extended audio bandwidth of up to 40 kHz. This means that the Amplifier is capable of reproducing the finest sound details and the full dynamics of modern music recordings. Classic Class D Amplifiers typically do not achieve this breadth and detail depth, which is why this is particularly significant for audiophiles. The support for high-resolution formats ensures that the original sound character of the recordings is preserved, significantly enhancing the listening experience.
