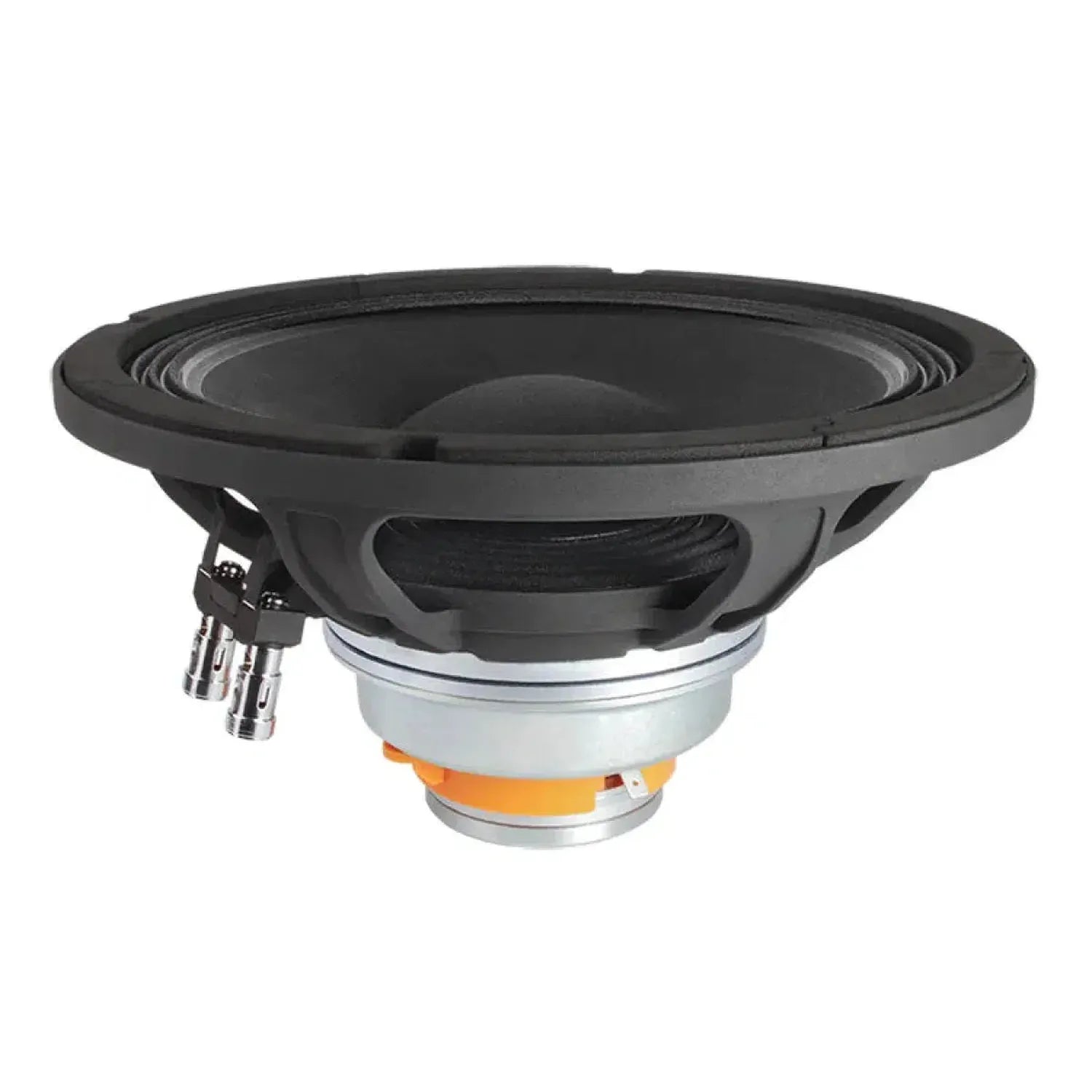

FaitalPro 10HX240
10" (25cm) coaxial loudspeaker
still
/piece
You save 5% on this item by choosing the payment method prepayment during the order process (bank transfer) during the order process The discount will be deducted automatically!
Seen cheaper?
"We keep up - guaranteed!" Take advantage of the low price guarantee! If you find an item cheaper on a website within the EU, we will match the competitor's price and add an item from our range of accessories.
Your advantages with Masori
Description
10HX240 is a 10" (25cm) coaxial driver designed for powerful, clear and precise sound reproduction. With a lightweight steel frame and a maximum music power handling of 240W, it offers a reliable yet sonorous audio performance.
_msthash="1" _msttexthash="405223"SPEZIFIKATIONEN
- Nominal diameter 250 mm
- Total diameter 261 mm
- Bolt circle diameter 246 mm
- Diameter of the baffle cut-out 230 mm
- Depth 137 mm
- Flange and gasket thickness 12 mm
- Net weight 4.1 kg
- Shipping carton
- (single box) 282 x 280 x 140 mm
- Shipping weight: 4.5 kg
TECHNICAL PARAMETERS
{_istranslated="1" _mstmutation="1 "LF
}_istranslated="1" _mstmutation="1"{ HF }
- Nominal impedance 8 Ohm 8 Ohm
- Minimum impedance 6.4 Ohm 6.8 Ohm
- RMS load capacity 250 W 30 W
- Max. Load capacity 500 W 60 W
- Sensitivity (1W/1m) (3) 96 dB 107 dB
- Frequency range 65-4000 Hz 1500-20000 Hz
- Voice coil diameter 65 mm 37 mm
- Winding material Al Al
- Former material glass fiber Kapton
- Winding depth 17.4 mm 2.1 mm
- Magnetic gap depth 8 mm 2.6 mm
- Flux density 1.25 t 1.85 t
- Min. cross. Frequency (4) - 1.7 kHz
- Beam angle - 110°
- Membrane material - ketone polymer
- Membrane shape - ring-shaped
- Neodymium ring magnet Neodymium ring
- Basket material: Aluminum -
- Demodulation aluminum ring -
- Cone surround (5) Triple Roll -
- NET air volume filled by speaker 1.25 dm^3 (0.044 ft^3) -
- Spider profile 1x shafts with variable height -
THIELE AND SMALL PARAMETERS { LF }
- Fs 65 Hz
- Re [LF] 5.3 Ohm
- Re [HF] 5.5 Ohm
- Qes 0.3
- Qms 3.3
- Qts 0.28
- Vas 31.8 dm^3 (1.12 ft^3)
- Sd 347 cm^2 (53.71 in^2)
- Xmax (6) 7.37 mm
- Xdamage (7) 14.8 mm
- Mms 31.6 g
- Bl 15.5 N/A
- Le 0.45 mH
- Mmd 24.3 g
- Cms 0.19 mm/N
- Rms 3.9 kg/s
- Eta Zero 2.98 %
- EBP 217 Hz
- EBP 217 Hz
